Schöck Isokorb® XT/T Typ SQ
Tragendes Wärmedämmelement für gestützte Stahlkonstruktionen mit Anschluss an Stahlbetondecken
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_xx13299a8b52e26xr.jpg)
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_vt13dc158b52e26kp.jpg)
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_qunf8dd77b52e26uv.jpg)
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_hd332ebf8b52e26nb.jpg)
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_ey8n192f7b52e26wc.jpg)
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_xx13299a8b52e26xr.jpg)

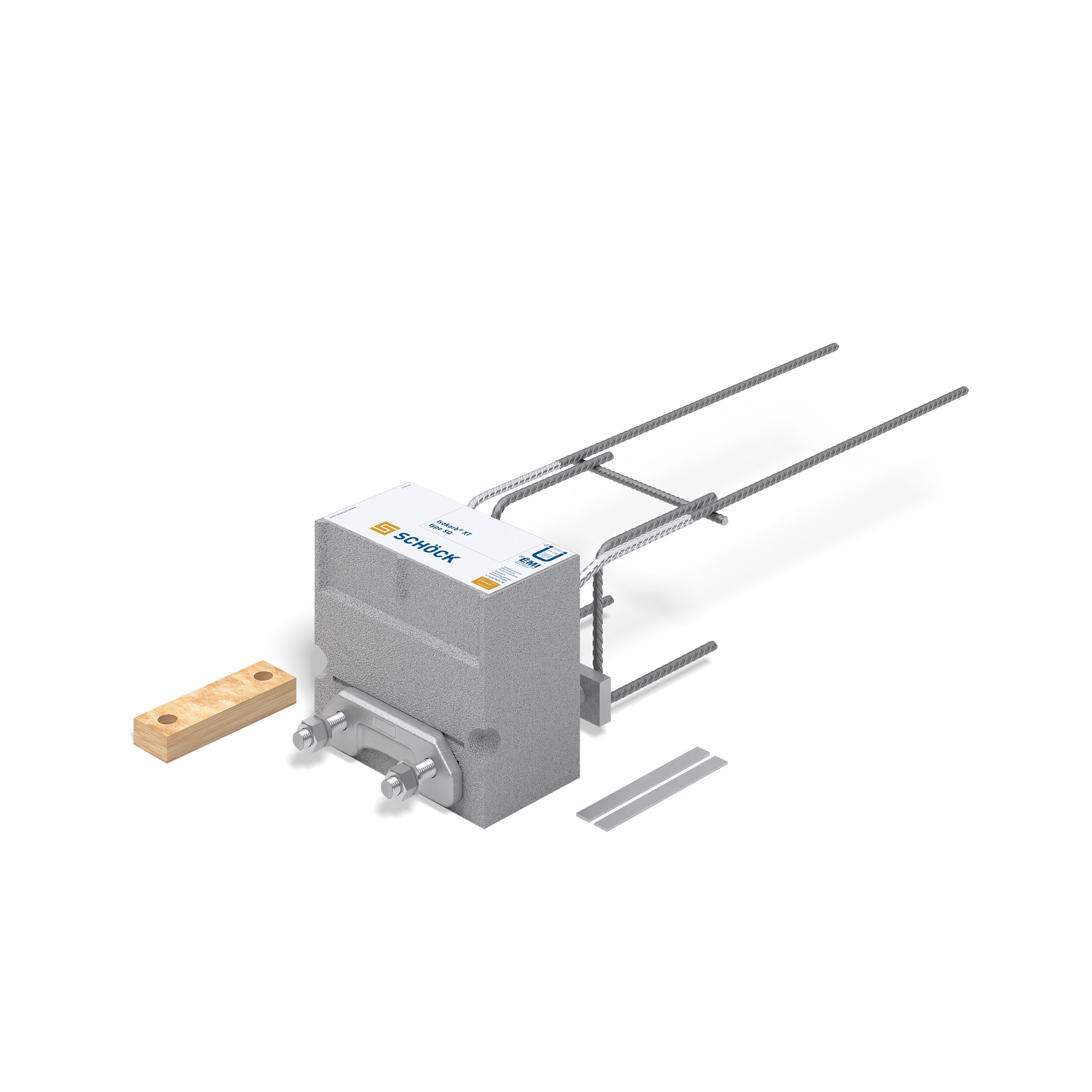

Schöck Isokorb® XT Typ SQ
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_vt13dc158b52e26kp.jpg)

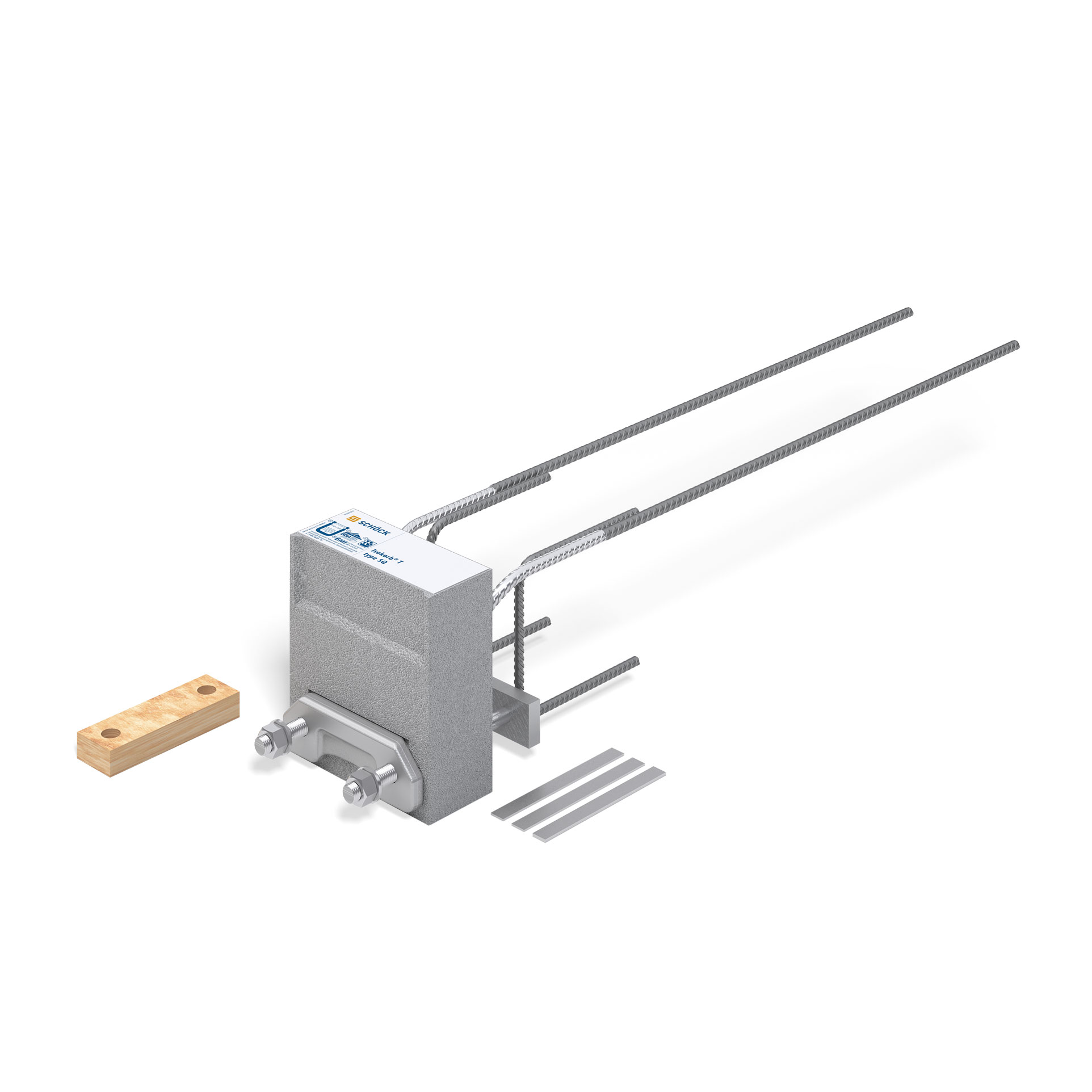

Schöck Isokorb® T Typ SQ
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_qunf8dd77b52e26uv.jpg)
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_hd332ebf8b52e26nb.jpg)

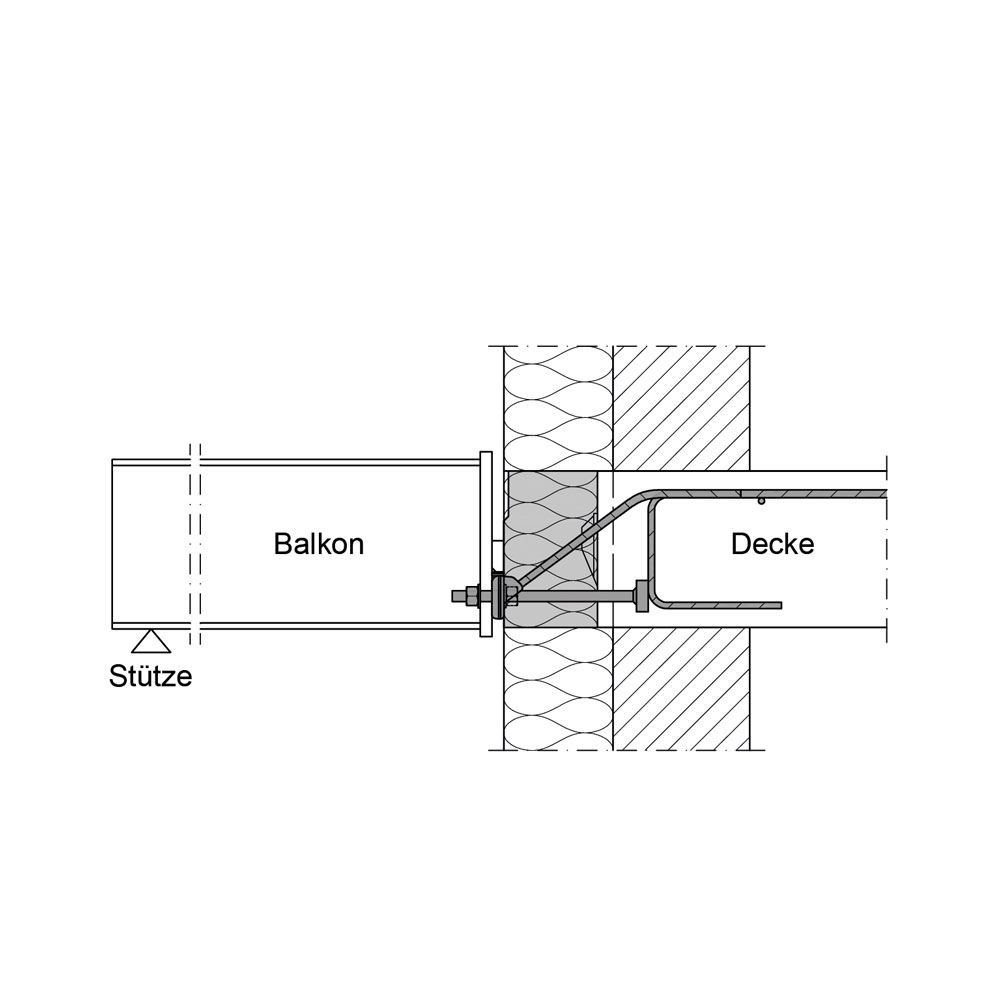

Einbauschnitt Isokorb® XT Typ SQ
![](https://www.elmenhorst.de/xchange/artikel/pk1bb486c552e26yt/bild_pk1bb486c552e26yt_ey8n192f7b52e26wc.jpg)

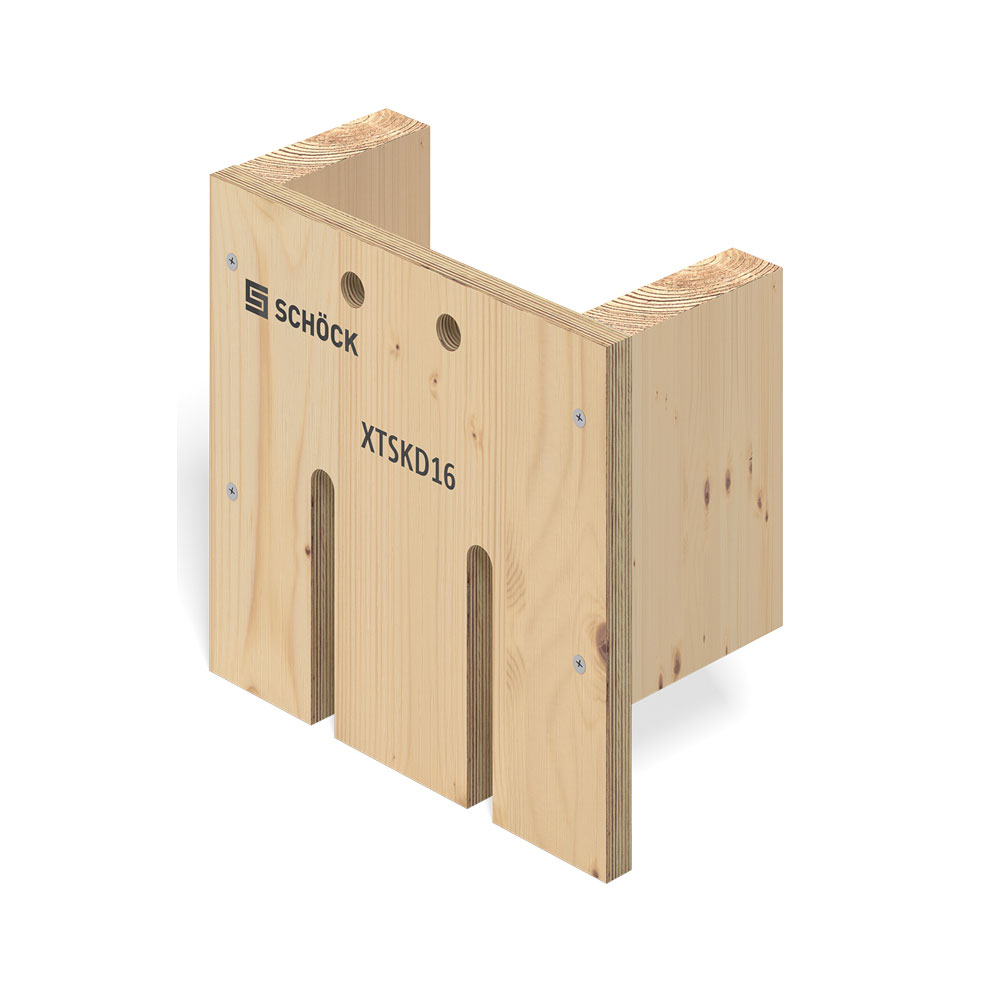

Zubehör: Einbauhilfe Schöck Isokorb® XT Typ SK Part M
- Das Element überträgt positive Querkräfte.
Schöck Isokorb® XT Typ SQ
- Haupttragstufe: V1, V2, V3
- Feuerwiderstandsklasse: R0
- Dämmkörperdicke: 120 mm
- Höhe: 180-280 mm, abgestuft in 10-mm-Schritten
- Länge: 220 mm
- Gewindedurchmesser: D16 = M16
Schöck Isokorb® T Typ SQ
- Haupttragstufe: V1, V2, V3
- Feuerwiderstandsklasse: R0
- Dämmkörperdicke: 80 mm
- Höhe: 180-280 mm, abgestuft in 10-mm-Schritten
- Länge: 180 mm
- Gewindedurchmesser: D16 = M16
Beispiel für Bestellbezeichnung:
XT Typ SQ-V3-R0-X120-H200-L220-D16-2.0
Zubehör für Schöck Isokorb® XT/T Typ SK und Typ SQ
Die Schöck Einbauhilfe dient zur Lagesicherung des Schöck Isokorb® vor und während des Betoniervorgangs
- Die Einbauhilfe für Schöck Isokorb® XT/T Typ SK-M1/MM1 H180-260 mm und Typ SK-MM2 H180-260 mm ist nur in der Bauhöhe h = 260 mm erhältlich
- Für Höhen von 180-260 mm anwendbar
- Die Einbauhilfe für Schöck Isokorb® XT/T Typ SK-M1/MM1 H180-260 mm ist auch beim Schöck Isokorb® XT/T Typ SQ anwendbar
